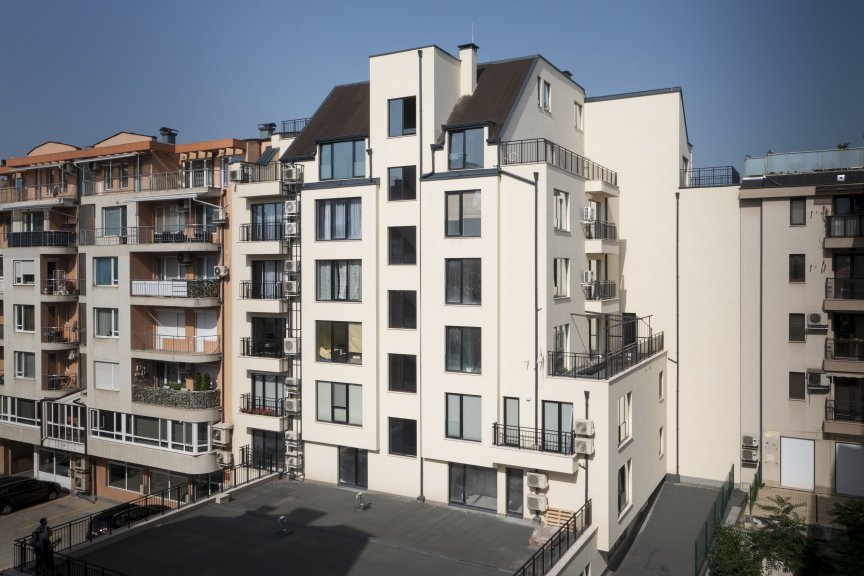

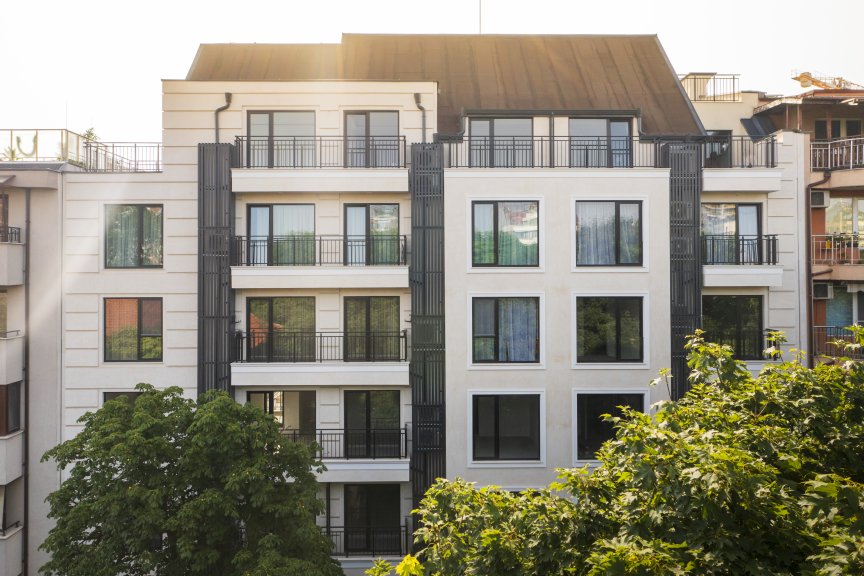

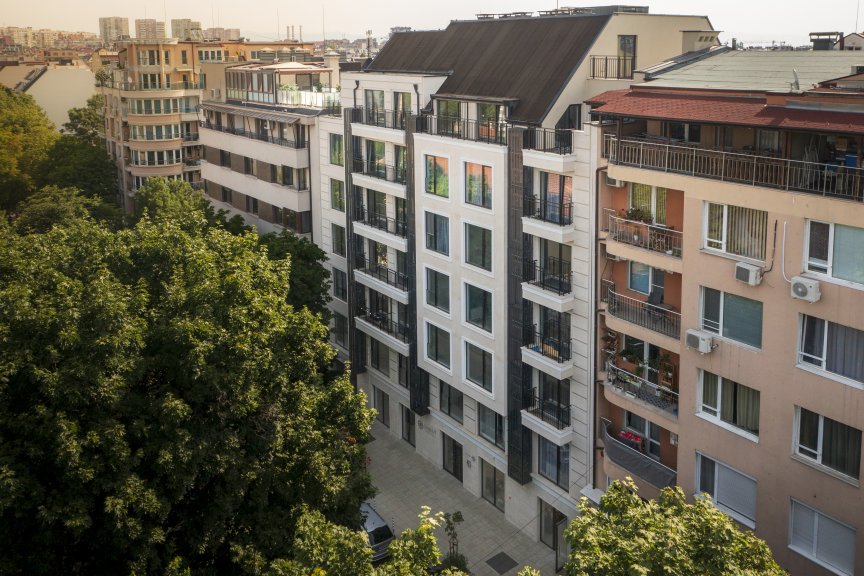

The building consists of a ground non-residential floor and 7 residential floors above it. The depth of the building, as indicated in the Detailed Development Plan (DDP), is 16 meters. The current project involves a seven-story construction following the outlines of the neighboring property's slope on the north side, and a six-story construction following the outlines of the neighboring property's slope on the south side. Within the plot boundaries, a single-story construction is planned for the ground floor, intended for public functions as outlined in the DDP. As per the DDP, an underground floor is designated for parking spaces for cars, motorcycles, and bicycles. The primary load-bearing structure is a monolithic reinforced concrete skeleton-frame. The intermediate structures predominantly consist of beamless slabs or slabs with beams along certain structural axes, supported by columns and footings designed as a foundation slab. The exterior walls are made of 25 cm ceramic bricks, externally insulated with 10 cm of mineral wool insulation at a density of 70 kg/cubic meter, finished with decorative silicone-silicate plaster on the facades. Architectural decorative elements such as EPS cornices and linear profiles are planned for the western facade. Additionally, the ground floor zone of the western facade features cladding made of natural stone. The residential building 'Smart' is constructed using the Baumit ETICS Pro with a final coating of SilikatTop K1.5 + CreativTop in the visual appearance of varovik (CreativTop Silk 0019, Vario 0019, Lazur 0374).

System ociepleń Baumit

Baumit Life Color

star_border
Kod koloru
0019
HEX: #F5F4F0
RGB: 245/244/240
TSR: ≥25
HBW: 89
Więcej informacji
star_border
Kod koloru
0374
HEX: #AE9077
RGB: 174/144/119
TSR: ≥25
HBW: 30
Więcej informacji

Inne produkty Baumit

Baumit CreativTop - limestone

Architekt

arch. Nikolay Simeonov and arch. Georgi Savov; "VAMOS"

Wykonawca

“SMART DEVELOPMENT TEAM“

Inwestor

"Bulgarian-American Credit Bank", "SMART CONSULTANTS"

Lokalizacja

Sofia

Rok

2022

Kategoria

Stunned by Texture
